4 2/1 Series API Standard Cementing Tools Multi Stage Cementing Collar

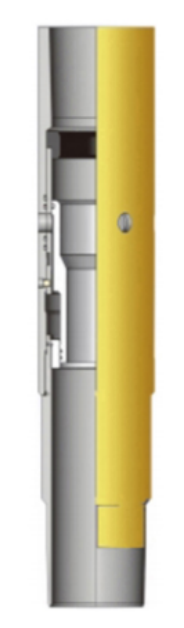

This page is going to clarify one of them : Hydraulic stage collar

Product Description

1) Introduction

Stage collar is a tool used to complete the cementing operation into two times.

The stage collar should be used with centralizers above and below and a cementing basket positioned below the ports.

2) How to work

The operation of the collar is simple and reliable. It features a double locking mechanism consisting of a snap lock and ball lock system to assure that the ports are permanently locked closed after cementing is completed. Internal parts are designed to lock to prevent rotation during drill out and are constructed of easily drillable materials.

3) Features

a. Opening pressure can be adjusted and it is not subjective to hole angle.
b. The pressure-relief design prevents fluid trapping and compression during the closing phase of the tool's operation.
c. The I.D of upper/lower sub is the same as that of casing, but smaller than that of closing sleeve, which can minimize chances of damages to the closing sleeve.
d. The inner seats are made of an easily drillable NBR rubber/aluminum material. Both the opening and closing seats lock against rotation for easy drill out.

Hydraulic collar advantage and features

1-It can only manufactured by SWS in domestic china as one unique tech.

2- It can be used in horizontal and highly deviated well bores and applications where opening of the stage collar after displacement of the first

stage cementing is required.

3-The opening pressure can be changed to allow opening of the tool through a wide range of pressures.

4-The opening free fall trip device is optionally available for use if the stage collar is opened mechanically

5- When premium thread are using DRK , we recommend to use a landing collar to receive the 1st stage latch down wiper plug.

  SWS offers a range of premium API casing accessories and OCTG to meet the challenging demands of oilfield and E&P companys operatiing

world widely.

  To meet these demands, sws has established a manufacturing facilitu of 78000sq ft. This facility has modern CNC maching, fabrication and

procssing equipment, testing and inspection facilities, together with raw material and production storage.

  To satisfy our customer’s expections, sws offers advanced production facility, complete and systematic production, as well as groups of

management, design and manufacturing.

  SWS's main facility is located in a major industrial area, with convenient transportation and science industry around there.

  The demands of customer can be met rapidly anf concisely with the competitive advantage of technology, talent, raw material, together with

geography and transportation.

  SWS has partners all over the world to support our clients on global supply and support in anytime.

  Qualification obtained:

sws is committed to provide competitively advanced technical facility that has been designed, manufactured and tested to get the approval of

industry standard API, along with international systematic standards( API Q1, 14001, 18001)
